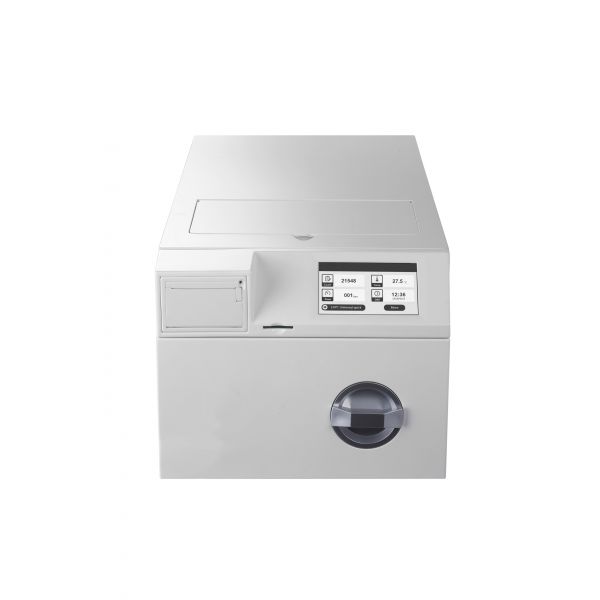

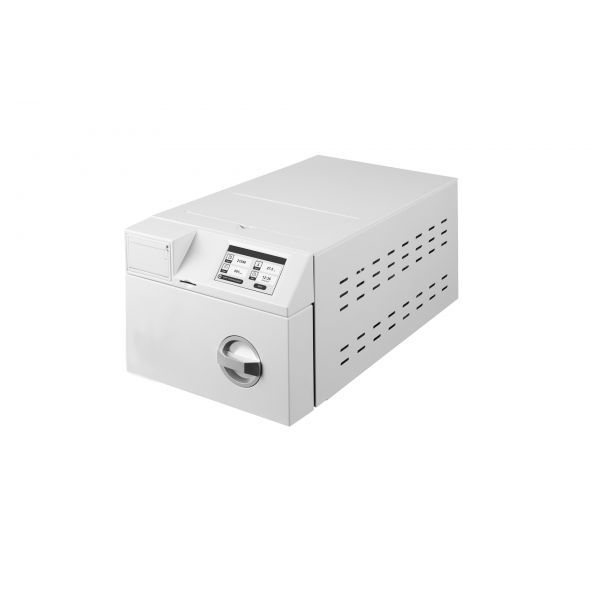

This Class B Autoclave pressure steam sterilizer is ideal for use in the Tattoo & Piercing and chiropody & podiatry Industries. This is a front loading autoclave with 7 preset sterilisation programs and one custom program.
The autoclave has a capacity of 3 litres with a chamber size of 303mm deep x 195mm x 78mm.
Category | Class B |
Working type | Front loading and fully automatic |
Design | Modern design aesthetic |
Program | 7 Preset sterilization programs |
1 Custom program | |
1 Cleaning Program | |
B&D / Helix Tests | |
Data output | Printer & SD Card |
Water Quality Detector | Yes |
Steam Generating | Separated steam generator |
Program:
Program |
121° Solid |
121° Hollow |
121° Porous |
134° Solid |
134° Hollow | 134° Porous |
Temp (°C) | 121 | 121 | 121 | 134 | 134 | 134 |
Pressure(KPA) | 110 | 110 | 110 | 210 | 210 | 210 |
Time(Min.) | 20 | 20 | 20 | 40 | 40 |
40 |
Program | Prion | User defined | BD/Helix Test | Vacuum Test | Clean |
Temp (°C) | 134 | custom | 134 | / | 105 |
Pressure(KPA) | 210 | custom | 210 | -80 | 20 |
Time(Min.) | 19 | custom | 3.5 | 15 | 5 |
Technical Data:
Capacity | 3L |
Description | Small Autoclave |
Class | B |
Certification | CE 1023, ISO 13485 |
Standard | BS EN 13060:2004 + A2:2010 |
Frequency | 50Hz |
Plug | 3 pin plug |
Wattage | 2.4 KW |
Sterilization temperature | 105 - 134°C |
Max working pressure | 0.21-0.23MPA |
Material of chamber | Stainless steel 304 |
Screen type | LCD Touchscreen |
Language available | English, German, Chinese |
Lock system of door | Mechanical electrical locks |
User password | Yes |
Output | Thermo printer & SD Card |
Standard package list: | |
Autoclave | 1 |
Power cable | 1 |
Water drain fitting | 1 |
Tray | 2 |
Tray holder | 1 |
Tray handle | 1 |
Instruction manual | 1 |
Package info: | |
Net weight | 24kgs |
Gross weight | 29kgs |
Chamber | 303mm deep x 195mm x 78mm |

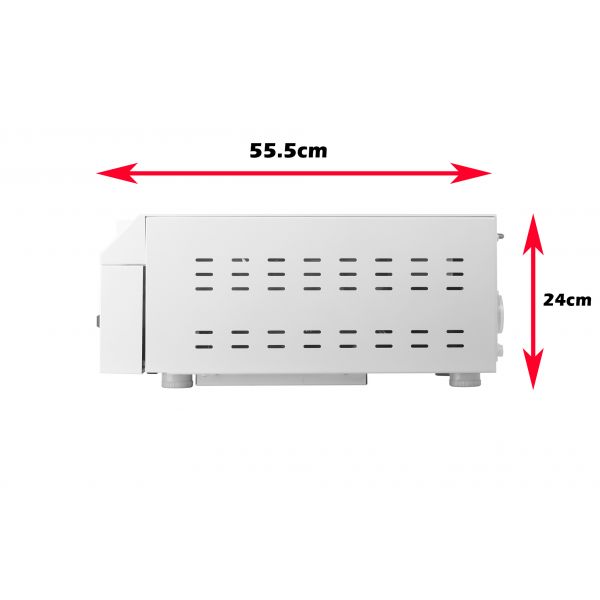

Dimesions | 555mm x (W) 286mm x (H) 244mm |
Package size | 71cm x 52cm x 42cm |
